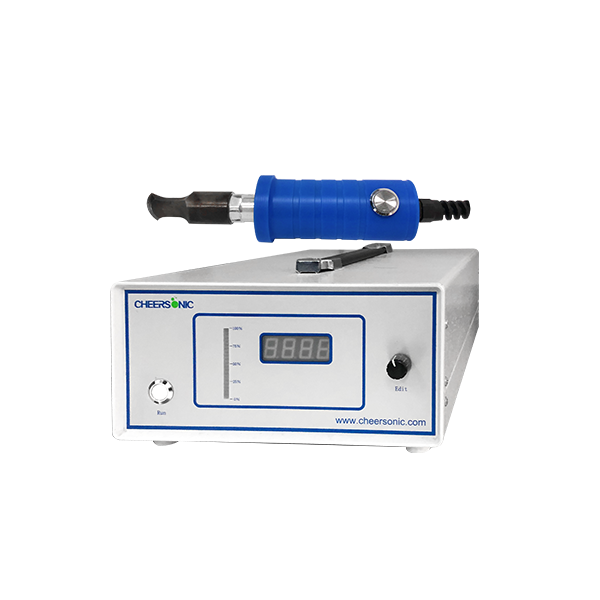

HC300 Manual Ultrasonic Fabric Cutter

Sewsonic HC300 Manual Ultrasonic Cutting Device is designed to cut textile thermoplastic films, rubber woven and non-woven fabrics. The ultrasonic cutting system can be operated as a handheld device or incorporated into automated machinery. The sharpness of the ultrasonic cutting machine varies according to various combinations of the oscillator, sensor and blade.Thanks to its extensive experience, Sewsonic is prepared to suit a variety of material combinations. Since we can choose the model that is best for your cutting work, we require that you first determine the clarity of the selected model by testing.

• Beautiful and complete incision, neat and smooth trim, no burrs
• The cutting part has a fusion to prevent the material from loosening
• Minimal blade bending enables more direct cutting
• High production speed and benefits
• No need for sharp blades, a lot of pressure, and no damage to the material


• PP fabric
• Sunshade and roller blind fabric
• Forming fabric
• Printed fabric
• Knitted fabric
• Yarn knit

• Model: HC300
• Output Power: 300W
• Knife height: 210mm
• Handle diameter: 43mm
• Knife weight: 0.5kg
• Knife model number: CSH-G

• Frequency: 40khz
• Voltage: 220V/50HZ/110V
• Length: 380mm
• Width: 235mm
• Height: 125mm
• N.W.: 3.2kg

• Material of Blade: High-speed steel
• Ultrasonic system: Can work continuously
• Handle material: Nylon
• Cutting speed: 0-30m / min
• Length of cord: 3m
