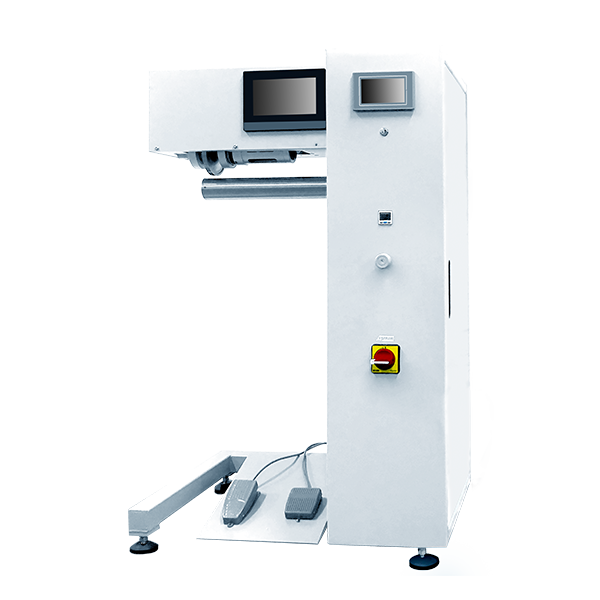

USM450 Ultrasonic Sewing Equipment

Programmable and innovative ultrasonic sewing machines USM450 combines all the physical advantages of ultrasonic welding with the conventional sewing experience. Standard or custom-made anvil wheels can realize smooth and even seams. The straight pillar version is used to weld a seam or hem at the end of sleeves or tubes. In addition, it is particularly suited for welding bottoms in tubes and containers, as well as for welding annular seams on hoses.

• Low energy consumption
• High production speed
• High wear comfort due to smooth seam
• No emissions or fumes with most materials
• No start/stop marks
• Inaudible operating

• Ultrasonic generator control power and amplitude constantly
• Automatic amplitude stabilization and frequency auto-tuning during working
• Ultrasonic frequency of 35Khz and power of 600W
• Ultrasonic amplitude from 50-100%
• Sonotrode made of steel or titanium up to 10 mm
• Standard or custom-made anvil wheels for smooth and even seams

• 7”touch screen monitor
• Single programmable automation controller (PAC)
• Embedded ARM programming software is user friendly
• Stable memory for storage of up to 999 programs
• All parameters controlled electronically (power, amplitude, speed and pressure)
• Highly controllable welding that produces reliable consistent results
• Multi-language operation system

• Generator:400-800 Watt
• Sonotrode: Titan roll seam sonotrode 104 mm diameter
• Sonic converter: Hybrid converter with spinning transformer
• Seam width:1-10 mm
• Clearance:400 mm
• Welding pressure:0-400N
• Power supply: 220V,50/60Hz,16A (option: 110 V, 50/60 Hz)
• Welding speed:0.5-20.0m/min,10.0m/min(standard)
• Standards: CE certificate
