HBRC800 Replaceable Ultrasonic Cutter
HBRC800 Replaceable Ultrasonic Cutter
Share
Let's get into the nitty gritty details.
Describe

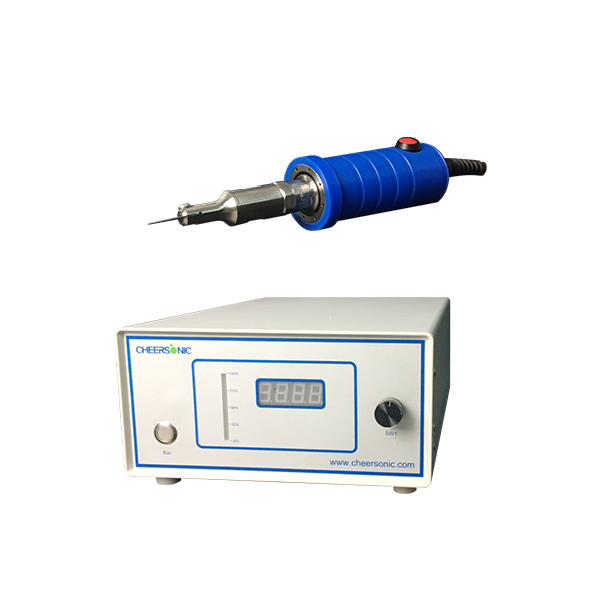

The HBRC800 replaceable ultrasonic hand-held cutter is ideal for long-term hand-held cutting. The transducer features compact size, but powerful performance thanks to the high frequency drive, thereby ensuring sharp cutting. The user-friendly design of shape enables to fully utilize the robot’s operation area. A wide range of materials, including newly-developed composite materials, rubber, and leather, can be cut freely with low processing pressure. Simplified and secure installation of the tool can be performed with a special square-headed screw and driver.
Feature
- Convenient and safe
- Easy and precise cutting force adjustment
- Ideal for straight cuts and contours
- Replaceable blade use
- High load material cutting machine, maximum output power is 800W
Applicable Materials
- Thermo plastics: plate, sheet, film, and laminated material
- Prepreg: carbon prepreg
- Composite materials: polyethylene fiber, glass fiber
- Rubber: vulcanized latex, non-vulcanized latex, sheeting material, tube
Technical Parameters
- Model: HBRC800
- Output power: 800W
- Handle length: 255mm
- Shell diameter: 44mm
- N.W.: 400g
CSCG1600 Parameter
- Frequency: 22kHz
- Voltage: 220V/50HZ/10V
- Length: 380mm
- Width: 235mm
- Height: 125mm
- N.W.: 3.2kg
Standard Configuration
- Model: 0.6mm thickness replacement blade
- Ultrasonic system: Can work continuously
- Material: Nylon handle, titanium alloy ultrasonic tool head
- Cutting speed: 0-30m / min
- Length of cord: 5m
