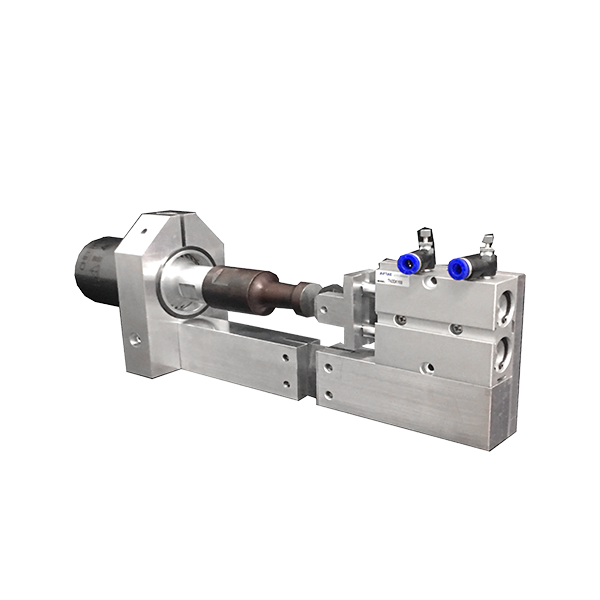

COS500 Automatic Ultrasonic Cutting System

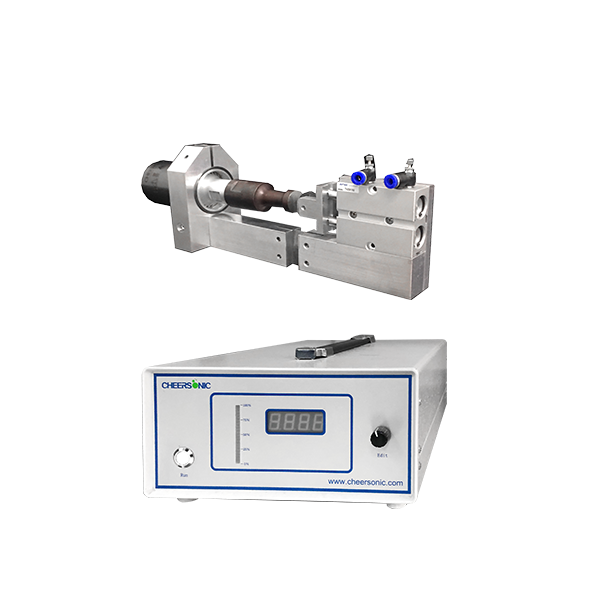

COS500 ultrasonic automatic cutting equipment can be installed on the loom and the stand, and provides the possibility to cut the fabric in one step. This structure is used for both ultrasonic edge cutting or center cutting of synthetic fabrics. Production speed can vary depending on the details of synthetic fibers, such as thickness and composition. This ultrasonic automated cutting device consists of a clamping component that can be easily connected to a pre-existing machine. The system consists of a 40 kHz transducer, an ultrasonic generator, a pneumatic cylinder and a cutting blade component.

• Can be automated
• Low power consumption, good effect
• Simple and convenient operation
• Fast cutting, high production speed and efficiency
• The cut surface is clean and tidy
• Small noise and small volume

• Sun protection fabric
• Filter fabric
• Knitted fabric
• PP woven fabric
• Home textiles
• Geotextile

• Model: COS500
• Output power: 500W
• Stand width: 80mm
• Stand length: 360mm
• Stand height: 120mm
• N.W.: 2.8kg

• Frequency: 40khz
• Voltage: 220V/50HZ/110V
• Length: 380mm
• Width: 235mm
• Height: 125mm
• N.W.: 3.2kg

• Blade model: 30mm diameter (can be customized), material: high speed steel
• Ultrasonic system: Can work continuously
• Material: 6061 aluminum
• Cutting speed: 0-30m/min
• Length of cord: 5m
